| Technical data |
R19-3XXX R19-6XXX R19-AXXX |
DC side |
|
| Cell type | LFP 3.2V/314 Ah |
| System battery configuration | 1P96S--1P216S 1P240S |
| Nominal capacity | 96kwh--217kWh 241kWh |
| Nominal voltage range | 1P96S: 268.8V--307.2V-350.4V 1P216S:604.8V--691.2V--788.4V 672V~768V～876V |
| AC side(on-grid) | |
| Nominal power | 30 kW 60kw 100kW |
| Nominal voltage | 400 V 3P+N+PE |
| Voltage range | 340V～440 V |
| Nominal frequency | 50 Hz/60 Hz |
| Frequency range | 45 Hz～55 Hz/55 Hz～65 Hz |
| Max.THD of current | <3%(Nominal power) |
| Power factor range | 1.0 leading～1.0 lagging |
| AC side(off-grid)* | |
| Nominal voltage | 400V |
| Nominal frequency | 50 Hz/60 Hz |
| Max.THD of voltage | <3%(Linear load) |
| Unbalance load capacity | 100 % |
| PV side | |
| Max Power | 19.2kw+19.2kw 38.4kw+38.4kw 50kW+50kW(option) |
| PV Max voltage | 850V 900V |
| start Voltage | 250V 0V |
| MPPT voltage range | 200V-800V 0V--900V |
| Max current | 32A+32A 64A+64A 160A+160A |
| System parameter | |

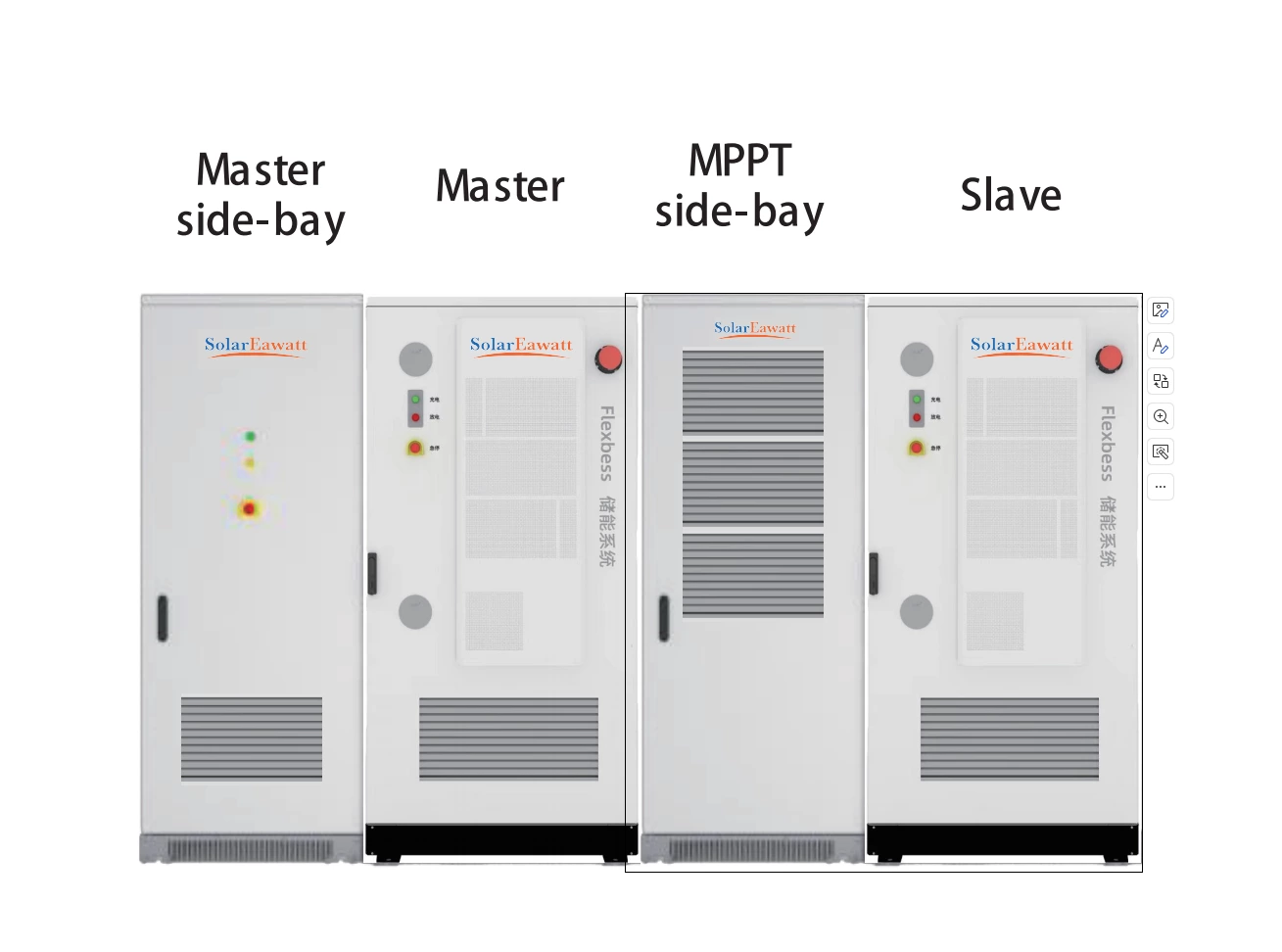

| cabinets configuration | 1-3 2-3 |
| Dimensions(W*H*D) | single cabinet:650 mm*1950 mm*1000 mm |
| Weight | |
| Degree of protection | IP54 |
Auxiliary power supply |
Internal DC and External AC |
| Anti-corrosion degree | C3(Default) |
| Operation humidity range | 0%～100% |
| Operation temperature range | -30℃~50℃(>45℃ derating) |
| Max. operating altitude | 3000 m |
| Temperature control method | Force air cooling |
| Noise | ≤70 dB(A)@ 1m |
| Fire suppression system | Smoke detector, Heat detector, Alarm sounder |
| Communication interface | Ethernet |
| Communication protocol | Modbus TCP |
| Standard | IEC 62619, IEC 62477,IEC61000, UN 38.3 |
| Max.Parallel quantity(off-grid) | 10 |

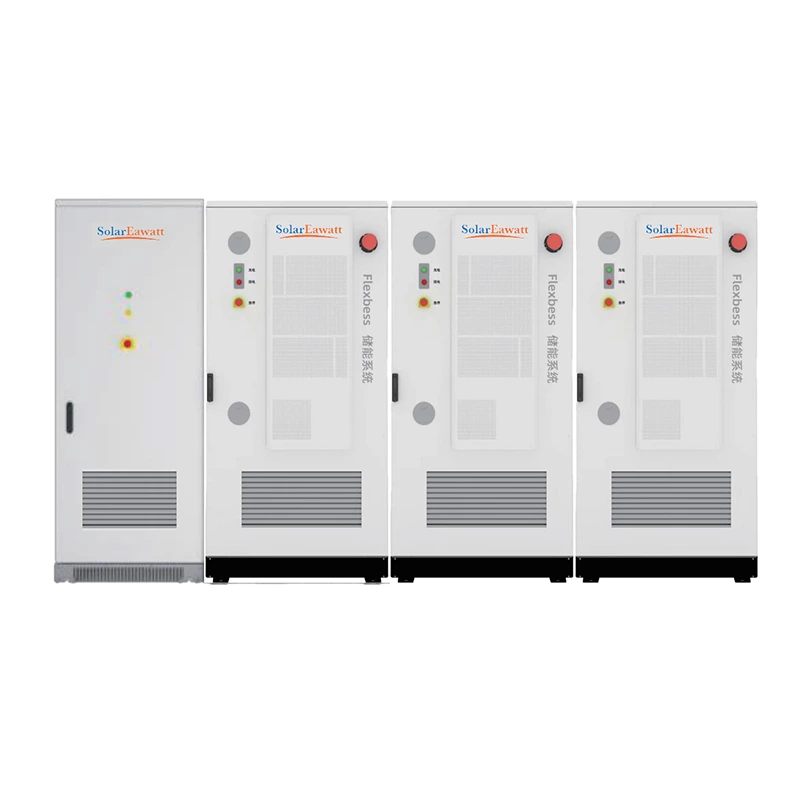

FIexBESS R19 Series
- Back up power for frequent mains outages

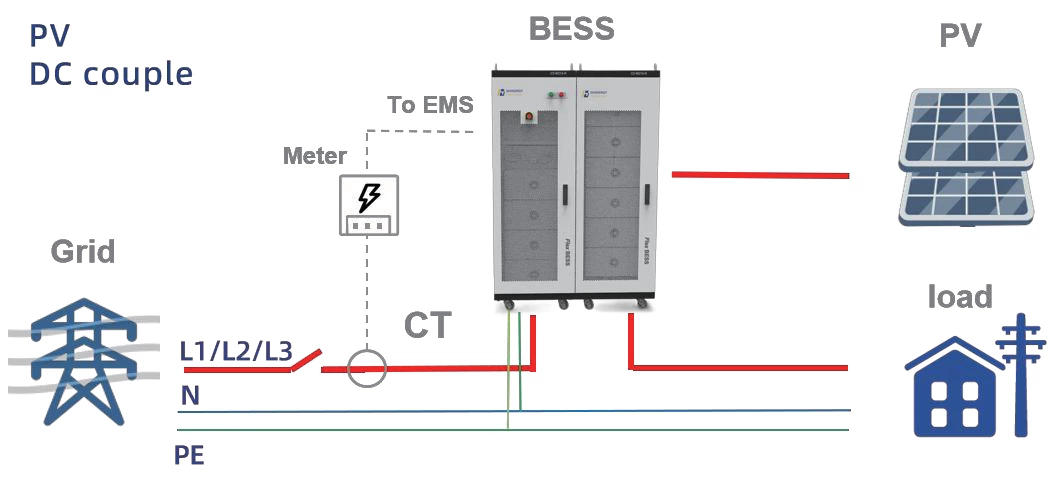

- PV Self-consumption
- Peak shaving
- Power expansion
- On-Off grid

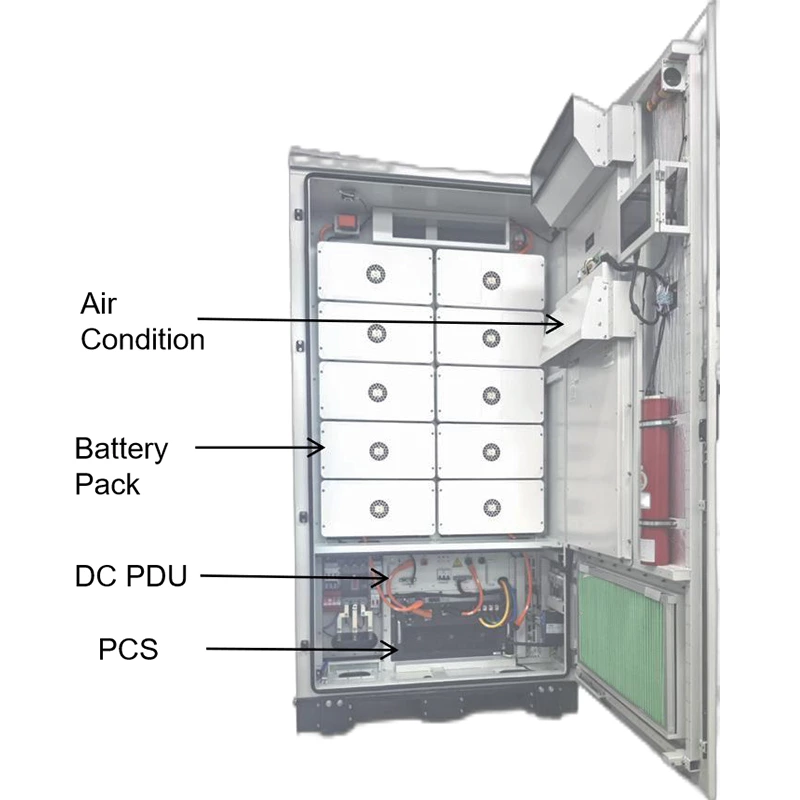

- The Solid-insulated pack provides strong electrical safety
- PACK, RACK,PCS three-level overcurrent protection
- Dual auxiliary powers provide a black start
- A standardized basic platform facilitates the combinationof different battery capacities and output powers
- Multiple functional units such as MPPT and ATS meetdifferent needs
- Support a maximum expansion to 2411kWh (off-grid)
- Deep, thorough insights into battery, grid, and system datafacilitate alarm management and maintenance
- Near-distalintelligent wireless operation and one-keyremote upgrade, to provide boundless service
