| Technical data | FlexBESS M215-E-B107 |
| DC side | |
| Cell type | LFP 3.2V/280 Ah |
| System battery configuration | 1P120S |
| Nominal capacity | 107.5kWh |
| Nominal voltage range | 336V--384V-438V |
| AC side(on-grid) | integrated with SINEXCEL ISUNA L50K-TH PCS) |
| Nominal power | 50 kW |
| Nominal voltage | 400 V 3P+N+PE |
| Voltage range | 340V～440V |
| Nominal frequency | 50 Hz/60 Hz |
| Frequency range | 45 Hz～55 Hz/55 Hz～65 Hz |
| Max.THD of current | <3%(Nominal power) |
| Power factor range | 1.0 leading～1.0 lagging |
| AC side(off-grid)* | integrated with SINEXCEL ISUNA L50K-TH PCS |
| Nominal voltage | 400 V |
| Nominal frequency | 50 Hz/60 Hz |
| Max.THD of voltage | <3%(Linear load) |
| Unbalance load capacity | 100 % |
| PV side | integrated with SINEXCEL ISUNA L50K-TH PCS |
| Max Power | 4X18.75kW |
| PV Max voltage | 800V |
| start Voltage | 180V |
| MPPT voltage range | 140V-800V |
| Max current | 4X60A |
| System parameter | |
| PCS efficiency | 98% |
| System efficiency(charge or discharge) | 92% |
| Dimensions(W*H*D) | 650 mm*1950 mm*1486 mm |
| Weight | 1130kg(1218kg with PCS) |
| Degree of protection | IP54 |
| Auxiliary power supply | Internal DC |
Anti-corrosion degree |
C3(Default) |
| Operation humidity range | 0%～100 % |
| Operation temperature range | -30℃~50℃(>45℃ derating) |
| Max.operating altitude | 3000 m |
| Temperature control method | Forced air cooling |
| Noise | ≤70 dB(A)@1m |
| Fire suppression system | Smoke detector, Heat detector, Alarm sounder |
| Communication interface | Ethernet |
| Communication protocol | Modbus TCP |
| Standard | IEC 62619,IEC 62477,IEC 61000, UN 38.3 |
FIexBESS M215-E-B107
- Back up powerfor frequent mains outages

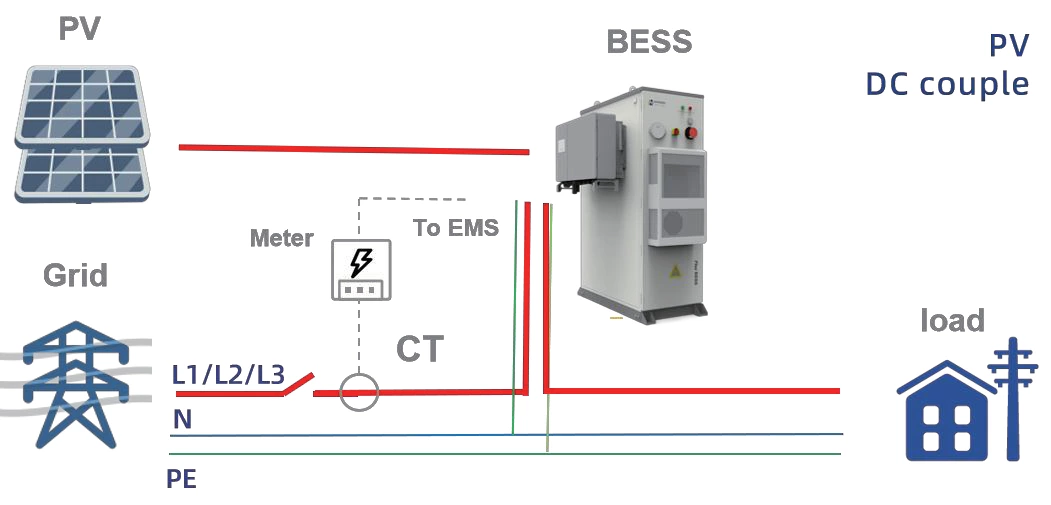

- PV Self-consumption
- Peak shaving
- Power expansion
- On-Off grid
- Fully integrated for plug and play on siteto reduce costs
- Fan cooling pack facilitates maintenance
- Deep, thorough insights into battery, PCs and system datafacilitate alarm management and maintenance witha innovative communication middleware
- Near-distalintelligent wireless operation and one-keyremote upgrade, to provide boundless service
- The Solid-insulated pack provides strong electrical safety
- PACK, RACK ,PCS(3th party)three-level over current
protection - Air condition cooling extends battery life
- DC auxiliary powers provide a black start
