| Model Name | SolarEawatt 3000S | SolarEawatt 3600S | SolarEawatt 4000S | SolarEawatt 4600S | SolarEawatt 5000S | SolarEawatt 6000S |
|---|---|---|---|---|---|---|
| Off-grid Output | ||||||
| Nominal Output Power | 3000W | 3600W | 4000W | 4600W | 5000W | 6000W |
| Nominal Voltage | 220V/230V/240V | |||||
| Nominal Frequency | 50/60Hz | |||||
| Nominal Output Current | 13.6A | 16.4A | 18.2A | 20.8A | 22.7A | 27.2A |
| Output THDu | <2% | |||||
| On-grid Parameter | ||||||
| Nominal Output Power | 3000W | 3600W | 4000W | 4600W | 5000W | 6000W |
| Max. Output Current | 13.6A | 16.4A | 18.2A | 20.8A | 22.7A | 27.2A |
| Nominal Grid Voltage | 220V/230V/240V | |||||
| Max. Input Current from Grid | 16.4A | 22.7A | 27.2A | |||
| Grid Voltage Range | 184-276V | |||||
| Frequency Range | 45-65Hz | |||||
| PV Input | ||||||
| Max. Input Power | 4500Wp | 6000Wp | 7500Wp | 9000Wp | ||
| Starting Voltage | 95V | |||||
| Max. Input Voltage | 600V | |||||
| MPPT Voltage Range | 80-550V | |||||
| Full Load MPPT Voltage Range | 350-500V | |||||
| Number of MPPT | 2 | |||||
| Max. Input String Per MPPT | 1 | |||||
| Nominal Input Voltage | 360V | |||||
| Max. Input Current | 18A/18A | |||||
| Battery Parameter | ||||||
| Battery Type | Lithium-ion | |||||
| Nominal Battery Voltage | 51.2V | |||||
| Battery Voltage Range | 42-58V | |||||
| Max. Charging Voltage | ≤60V | |||||
| Max. Continuous | 75A | 85A | 100A | |||
| Charging/Discharging Current | ||||||
| Efficiency | ||||||
| Max. Efficiency | 97.50% | 97.80% | 98.00% | |||
| European Efficiency | 97.20% | 97.30% | 97.50% | |||
| Max. Battery Charging/ | 95.20% | |||||
| Discharging Efficiency | ||||||
| General Data | ||||||
| Size(W*H*D) | 500mm*470mm*180mm | |||||
| Weight | 21kg | |||||
| Noise | <25dB(A) | |||||
| Operating Temperature Range | -25℃~+60℃ | |||||
| Cooling Method | Natural cooling | |||||
| Ingress Protection Grade | IP65 | |||||
| Mornitoring | LED/APP/WIFI/4G/Bluetooth | |||||
| Communication Port | RS485/CAN/DRED/Dry contact/Parallel port | |||||
| Protection | DC Switch, PV Insulation Resistance Detection, Residual Current Monitoring, | |||||
| Anti-islanding Protection, Reverse Polarity Protection(PV&Battery) | ||||||
| AC Short Circuit Protection, AC Overcurrent Protection,AC Overvoltage | ||||||
| Protection:LEVEL III;PV&Battery:LEVEL II, Surge Protection, Lightning Protection:TYPE II | ||||||
| Certification | ||||||
| CE_LVD | IEC 62109-1, IEC 62109-2, EN 62109-1, EN 62109-2 | |||||
| CE_EMC | EN61000-6-1, EN61000-6-2, EN61000-6-3, EN61000-6-4 | |||||
| Grid | VDE-AR-N 4105, C10-11,G98/G99, CEI 0-21, EN50549, | |||||
| NRS 097-2-1, AS 4777.2, R25,UNE217001,UNE217002,NTS 2.1 | ||||||
SolarEawatt Single Phase Hybrid inverter 3-6KW LV
- Silicon carbide technology 98% efficiency.
-
Dual MPPT, maximum 600V, 18A.
-
<10ms on/off grid switching.
-
6 units in parallel.
-
IP65. Noise <25dB.
-
ATS supports Diesel Generator.
-
Support APP/WIFI/4G/Bluetooth.
-

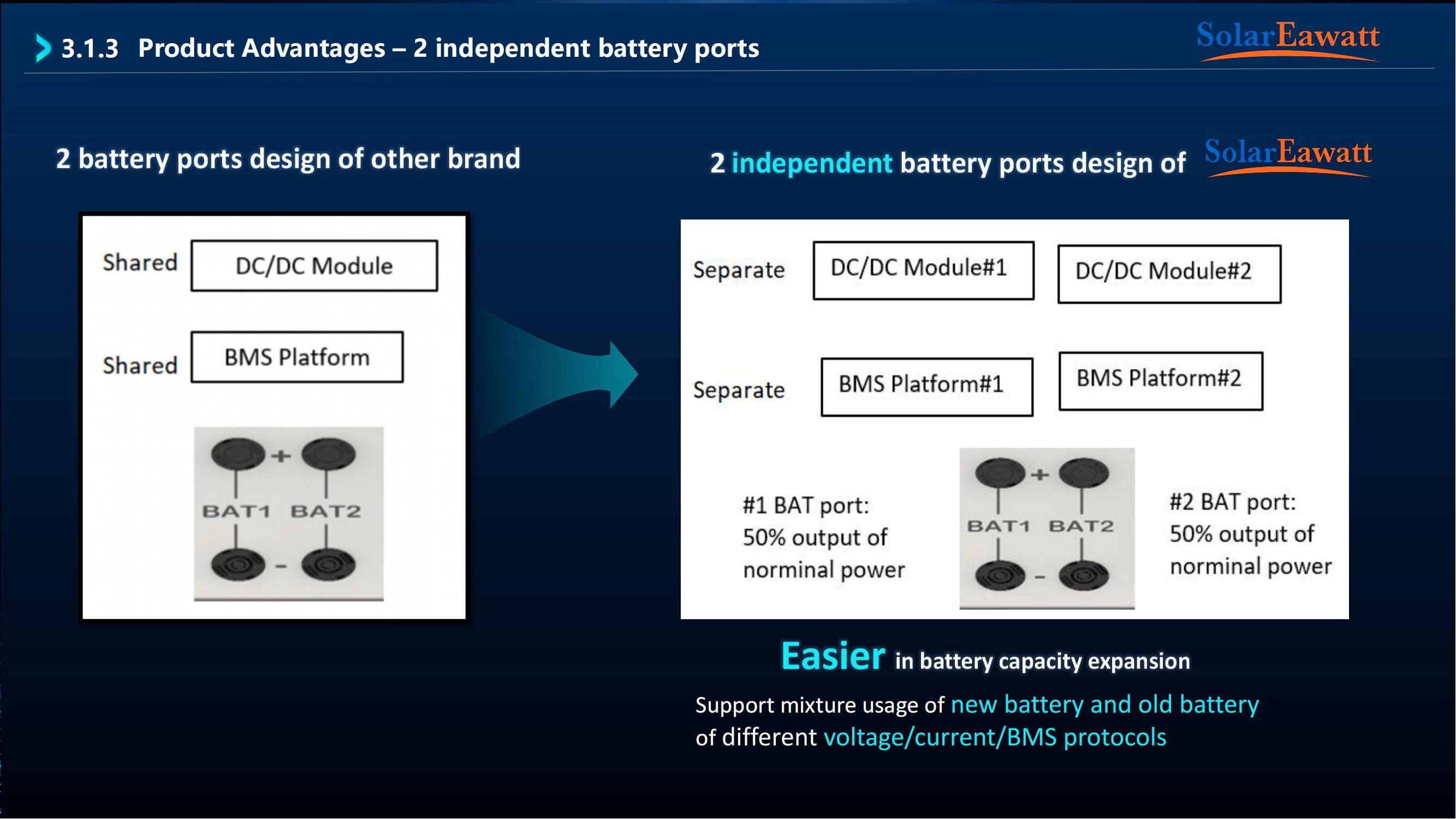

Dual independent battery branches, support new and old battery connection.
-
5/10 years warranty optional.
-
500mm*470mm*180mm 21kg.
