| Technical data | FlexBESS M215-E | FlexBESS M215-E-6107 |
|
DC side |
||
| Cell type | LFP 3.2V/280 Ah | |
| System battery configuration | 1P240S | 1P120S |
| Nominal capacity | 215kwh | 107.5kWh |
| Nominal voltage range | 672V--768V--876V | 336V--384V-438V |
| AC side(on-grid) | ||
| Nominal power | 100 kW | 60kw |
| Nominal voltage | 400 V 3P+N+PE | |
| Voltage range | 340V～440V | |
| Nominal frequency | 50 Hz/60 Hz | |
| Frequency range | 45 Hz～55 Hz/55 Hz～65 Hz | |
| Max.THD of current | <3%(Nominal power) | |
| Power factor range | 1.0 leading～1.0 lagging | |
| AC side(off-grid)* | ||
| Nominal voltage | 400 V | |
| Nominal frequency | 50 Hz/60 Hz | |
| Max.THD of voltage |
<3%(Linear load) |
|
| Unbalance load capacity |
100% |
|
| PV side (optional) | ||
| Max Power | 63kW+63kW | 38.4kW+38.4kW |
| PV Max voltage | 900V | |
| start Voltage | 0V | |
| MPPT voltage range | 438V-900V | |
| Max current | 160A+160A | 64A+64A |
| System parameter | ||
| PCS efficiency | 99% | |
| System efficiency(charge or discharge) | 92% | |
| Dimensions(W*H*D) | 110 mm*2200 mm*1495 mm | |
| Weight | 2200kg(without side box) | |
| Degree of protection | IP54 | |
| Auxiliary power supply | Internal DC | |
Anti-corrosion degree |
C3(Default) | |
| Operation humidity range | 0%～100% | |
| Operation temperature range | -30℃~50℃(>45℃derating) | |
| Max. operating altitude | 3000 m | |
| Temperature control method | Forced air cooling | |
| Noise | ≤70 dB(A)@ 1m | |
| Fire suppression system | Smoke detector, Heat detector, Alarm sounder (Gas detector and explosion vent window optional) |
|
| Communication interface | Ethernet | |
| Communication protocol | Modbus TCP | |
| Standard | IEC62619,IEC 62477, IEC 61000, UN 38.3 | |

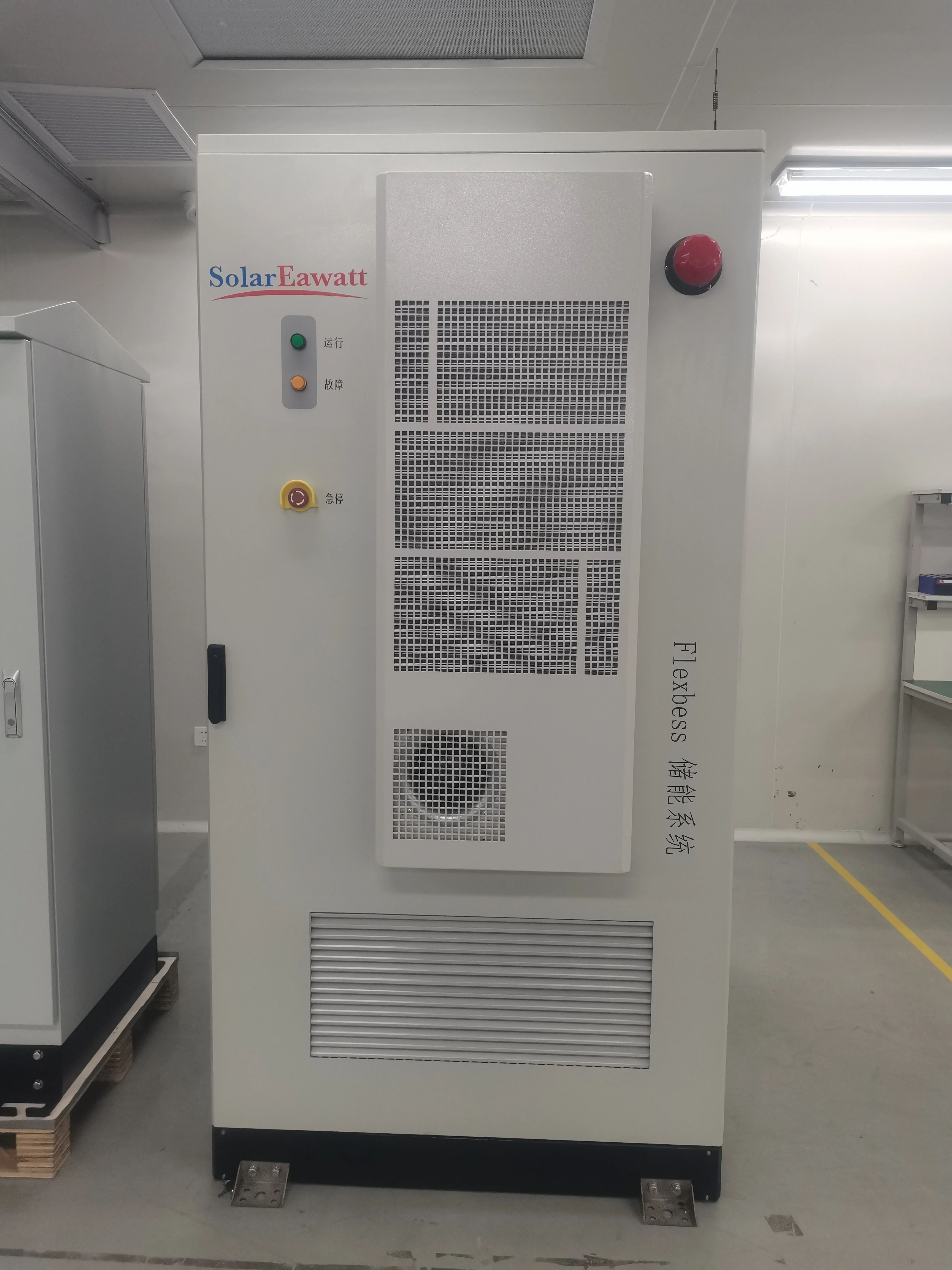

FIexBESS M215 Series
- Back up powerfor frequent mains outages
- PV Self-consumption
- Peak shaving
- Power expansion
- On-Off grid
- Fully integrated for plug and play on siteto reduce costs
- Fan cooling pack facilitates maintenance
- Deep, thorough insights into battery, PCs and system datafacilitate alarm management and maintenance witha innovative communication middleware
- Near-distalintelligent wireless operation and one-keyremote upgrade, to provide boundless service
- The Solid-insulated pack provides strong electrical safety
- PACK, RACK ,PCS(3th party)three-level over current
protection - Air condition cooling extends battery life
- DC auxiliary powers provide a black start
