| Model Name | Isuna D5K-SL-S | Isuna D6K-SL-S | Isuna D8K-SL-S | Isuna D10K-SL-S | Isuna D12K-SL-S |
| Off-grid Output | |||||
| Rated Output Power | 5kW | 6kW | 8kW | 10kW | 12kW |
| Max.Output Power | 5.5kVA | 6.6kVA | 8.8kVA | 11kVA | 13.2kVA |
| Peak Power &Duration | 20kVA(10s)* | ||||
| Max.Output Current | 25A | 30A | 40A | 50A | 60A |
| Rated Output Voltage | L/N/PE,220V/230V/240V | ||||
| Switching Time | <10ms | ||||
| GEN Max.Current | 82A | ||||
| GEN Voltage Range | 185-276V(P2N) | ||||
| On-grid Parameter | |||||
| Rated Output Power | 5kW | 6kW | 8kW | 10kW | 12kW |
| Max.Output Power | 5.5kVA | 6.6kVA | 8.8kVA | 11kVA | 13.2kVA |
| Max.Output Current | 25A | 30A | 40A | 50A | 60A |
| Max.Input Power | 18kVA | ||||
| Grid Frequency | 50/60±5Hz | ||||
| PV Input | |||||
| Max.Input Power | 18000Wp | ||||
| Max.Input Voltage | 800V | ||||
| Number of MPPT | 3 | ||||
| Max.Input String Per MPPT | 01/1/1 | ||||
| MPPT Voltage Range | 130-800V | ||||
| Starting Voltage | 140V | ||||
| Max.Input Current | 20A/20A/20A | ||||
| Short-Circuit Current | 24A/24A/24A | ||||
| Battery Parameter | |||||
| Battery Type | Lithium-ion/Lead-Acid/Sodium-ion(optional) | ||||
| Number of Battery Input | 2 | ||||
| Battery Voltage Range | 30-60V | ||||
| Battery Charging/Discharging Current | 125A*2 | ||||
| Efficiency | |||||
| Max.Efficiency | 98.20% | ||||
| European Efficiency | 97.70% | ||||
| Max.Battery Charging/Discharging Efficiency | 95.00% | ||||
| General Data | |||||
| Size(W*H*D) | 465mm*665mm*165mm | ||||
| Weight | 36kg | ||||
| Noise | <45dB | ||||
| Operating Temperature | -25℃~+60℃(>45℃ Derating) | ||||
| Operating Altitude | 4000m(>3000m Derating) | ||||
| Cooling Method | Intelligent Air Cooling | ||||
| Ingress Protection Grade | IP65 | ||||
| Topology | Isolation | ||||
| Communication Port | RS485*1,Wi-Fi/4G dongle*1,DO*2,DRM*1 | ||||
| Protection | DC Switch;Reverse Polarity Protection;AC Overvoltage/Overcurrent/Short Circuit Protection; Anti-islanding Protection;Residual Current Monitoring;Insulation Resistance Detection; Surge Protection:DC Type l/AC Type III;AFCI(Optional);PID(Optional) |
||||
| Certification | |||||
| CE-LVD | IEC62109-1&2,IEC62477-1 | ||||
| CE-EMC | EN61000-6-1,EN61000-6-2,EN61000-6-3,EN61000-6-4 EN 61000-4-16,EN 61000-4-18,EN 61000-4-29 |
||||
| Grid | VDE-AR-N 4105;VDE 0126-1-1 EN 50549-1;G98,G100;CEI 0-21;AS/NZS4777.2 NRS 097-2-1 | ||||

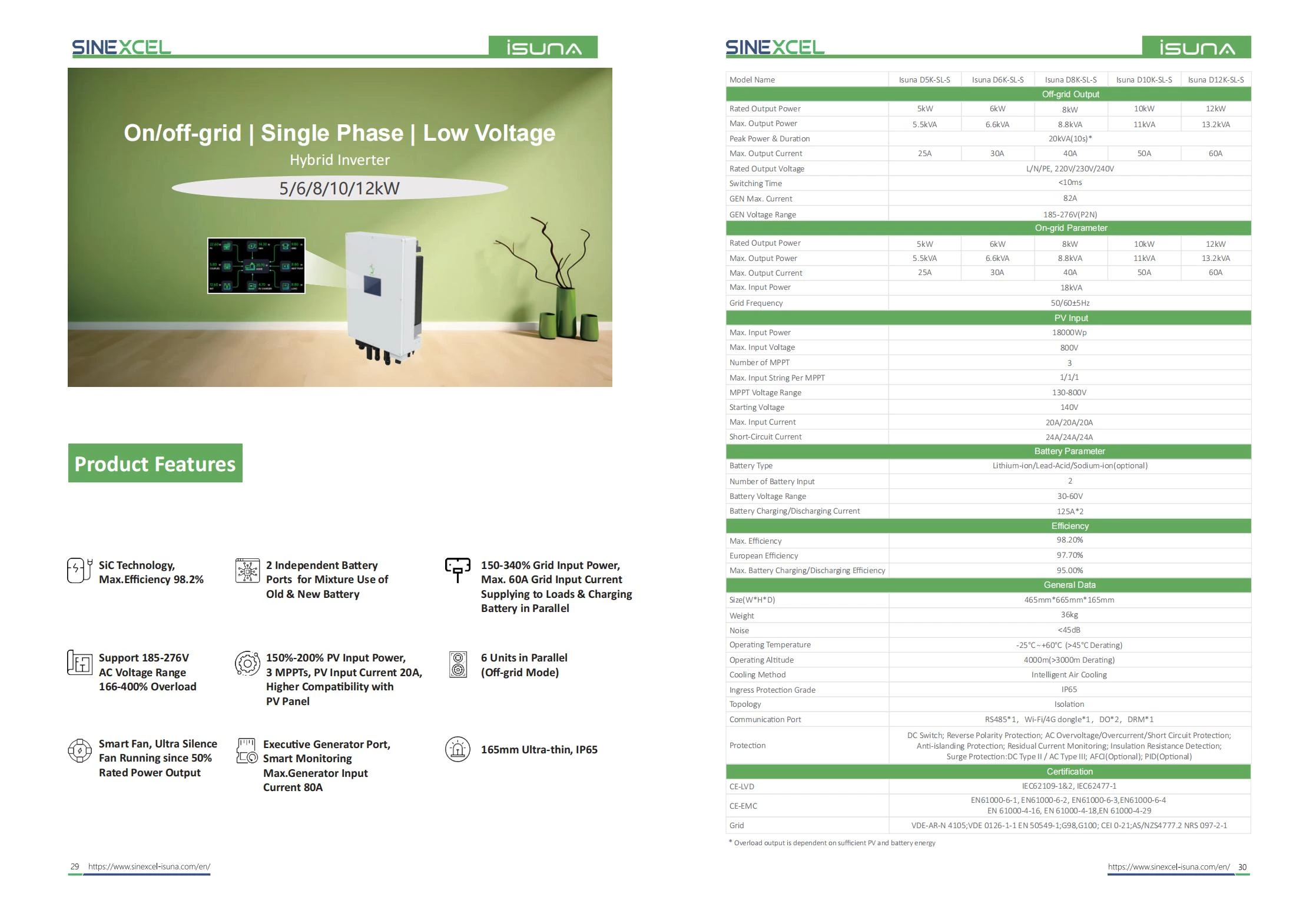

Sinexcel Single phase LV hybrid inverter 5-12kW with Display
- SiC Technology,Max.Efficiency 98.2%
- 2 Independent Battery Ports for Mixture Use of Old & New Battery
- 150-340% Grid input Power Max. 60A Grid input Current Supplying to Loads & charging Battery in Parallel
- 6 Units in Parallel(Off-grid Mode)
- Smart Fan, Ultra Silence Fan Running since 50% Rated Power Output
- Executive Generator Port, Smart Monitoring Max.Generator Input Current 80A
- 165mm Ultra-thin, lP65
