| Model Name | Isuna L22K-TH-S |
Isuna L25K-TH-S |
Isuna L29.9K-TH-S |
Isuna L30K-TH-S |
Isuna L40K-TH-S |
Isuna L42.5K-TH-S |
Isuna L50K-TH-S |
| Off-grid Output | |||||||
| Rated Output Power | 22kW | 25kW | 29.9kW | 30kW | 40kW | 42.5kW | 50kW |
| Max.Apparent Power | 24.2kVA | 27.5kVA | 29.9kVA | 33kVA | 44kVA | 42.5kVA | 55kVA |
| Rated Voltage | 3L/N/PE,220/380V;230/400V | ||||||
| Rated Frequency | 50Hz/60Hz | ||||||
| Rated Output Current | 31.9A | 36.3A | 43.5A | 43.5A | 58A | 61.6A | 72.5A |
| Max.Output Current | 35.1A | 39.9A | 43.5A | 47.9A | 63.8A | 61.6A | 79.8A |
| Peak Power &Duration | 150%(10s) | ||||||
| Generator Input Current | 150A | ||||||
| THDu | <3% | ||||||
| On-grid Parameter | |||||||
| Rated Output Power | 22kW | 25kW | 29.9kW | 30kW | 40kW | 42.5kW | 50kW |
| Rated Grid Voltage | 3L/N/PE,220/380V;230/400V | ||||||
| Rated Grid Frequency | 50Hz/60Hz | ||||||
| Rated Output Current | 31.9A | 36.3A | 43.5A | 43.5A | 58A | 61.6A | 72.5A |
| Grid Input Current | 150A | ||||||
| PV Input | |||||||
| Max.DC Input Power | 75000Wp | ||||||
| Max.Input Voltage | 1000V | ||||||
| Rated Input Voltage | 600V | ||||||
| Starting Voltage | 180V | ||||||
| MPPT Voltage Range | 150-850V | ||||||
| Max.Input String Per MPPT | 4/8 | ||||||
| Max.DC Input Current | 4*40A | ||||||
| Short-circuit Current | 4*60A | ||||||
| Battery Parameter | |||||||
| Battery Type | Lithium-ion/Lead-acid/Sodium-ion | ||||||
| Battery Voltage Range | 140-800V | ||||||
| Max.Charing/Discharing Power | 22kW | 25kW | 29.9kW | 30kW | 40kW | 42.5kW | 50kW |
| Max.Charing/Discharing Current | 80A*2 | ||||||
| Number of Battery Input Ports | 2 | ||||||
| Efficiency | |||||||
| Max.Efficiency | 98.6% | ||||||
| European Efficiency/CEC Efficiency | 97.97% | ||||||
| Max.Battery Charging/Discharging Efficiency |
98% | ||||||
| General Data | |||||||
| Size(W*H*D) | 850mm*550mm*295mm | ||||||
| Weight | 88kg | ||||||
| Topology | Non-Isolated | ||||||
| Operating Temperature | -25℃~+60℃ | ||||||
| Operating Altitude | 4000m(>3000m Derating) | ||||||
| Humidity Range | 0-100% | ||||||
| Ingress Protection Grade | IP66 | ||||||
| Cooling Method | Intelligent Air Cooling | ||||||
| Monitoring | LED+Bluetooth+APP,WIFI/LAN/4G | ||||||
| Communication Port | RS485*1,Internet/WIFI/4G,DO*2,Dl*2,Al*1,AO*1,DRM*1 | ||||||
| DC Power 12VDC 2A | |||||||

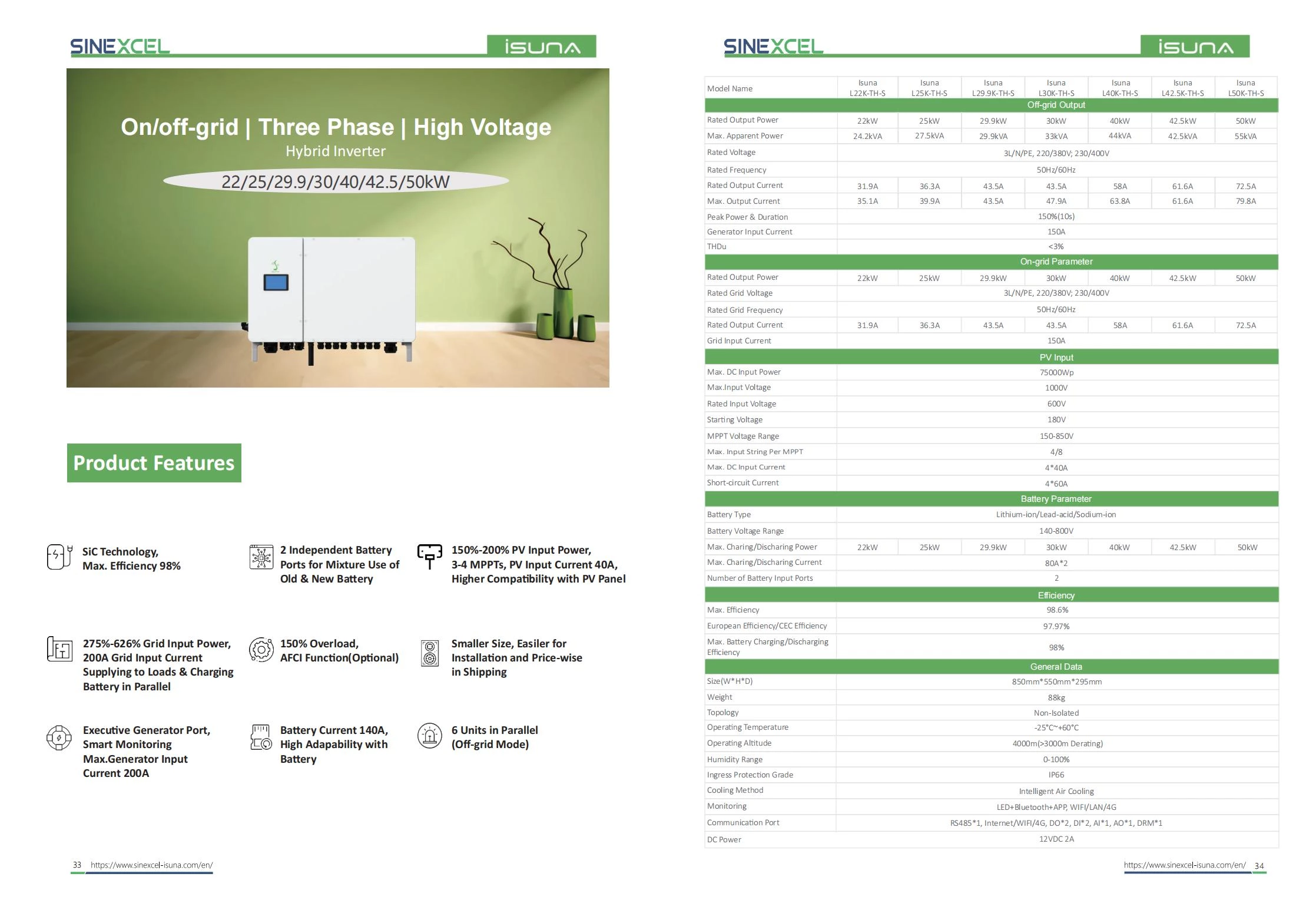

Sinexcel Three phase HV hybrid inverter 22-50kW with Display
- Sic Technology, Max. Efficiency 98%
- 2 Independent Battery Ports for Mixture Use of Old & New Battery
- 150%-200% PV Input Power 3-4 MPPTs, PV Input Current 40A,Higher Compatibility with PV Panel
- 275%-626% Grid Input Power 200A Grid input Current Supplying to Loads & Charging Battery in Parallel
- 150% Overload, AFCI Function(Optional)
- Smaller Size, Easiler for Installation and Price-wise in Shipping
- Executive Generator Port, Smart Monitoring Max.Generator Input Current 200A
- Battery Current 140A High Adapability with Battery
- 6 Units in Parallel (Off-grid Mode)
